Relacart UH-222D

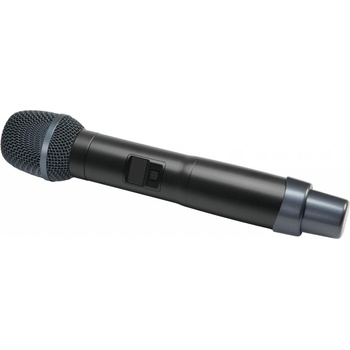

• Dynamic hand-held microphone with UHF pilot tone technology (PLL). Ergonomic aluminum alloy housing, applicable for touring. Matches receiver UR-222S. 2 license-free frequency ranges: 823-832MHz (Duplex Gap)and 863-865MHz. 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth. Infrared interface for easy and error-free synchronization with the receiver via infrared signal. Operation range approx. 80 meters. OLED display for battery status and frequency. Mute function. RF output power Hi/Low adjustable. Directly compatible with Shures SM58 capsule. Operation via 2 x 1.5 V battery (type AA), not included. License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis).Type: Dynamic
• Directivity pattern: Cardioid
• Carrier frequency: UHF 823-832 MHz and 863-865 MHz
• Transmitting frequencies: 90

10 frequency banks with up to 10 preset frequencies each

• Switching bandwidth: 11 MHz
• Deviation: 45 kHz
• Modulation: FM
• Coverage: 80 m (with line-of-sight)

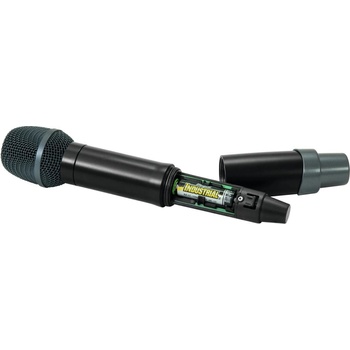

• Power supply: 2 x 1.5 V battery (type AA)
• Current consumption: approx. 120 mA
• Battery life: approx. 8 hours
• Dimensions: 52 x 255 mm
• Weight: 235 gDynamic hand-held microphone with UHF pilot tone technology (PLL). Ergonomic aluminum alloy housing, applicable for touring. Matches receiver UR-222S. 2 license-free frequency ranges: 823-832MHz (Duplex Gap)and 863-865MHz. 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth. Infrared interface for easy and error-free synchronization with the receiver via infrared signal. Operation range approx. 80 meters. OLED display for battery status and frequency. Mute function. RF output power Hi/Low adjustable. Directly compatible with Shures SM58 capsule. Operation via 2 x 1.5 V battery (type AA), not included. License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis).Type: DynamicDirectivity pattern: Cardioid Carrier frequency: UHF 823-832 MHz and 863-865 MHzTransmitting frequencies: 9010 frequency banks with up to 10 preset frequencies eachSwitching bandwidth: 11 MHzDeviation: 45 kHzModulation: FMCoverage: 80 m (with line-of-sight)Power supply: 2 x 1.5 V battery (type AA)Current consumption: approx. 120 mABattery life: approx. 8 hoursDimensions: 52 x 255 mmWeight: 235 g
